Description

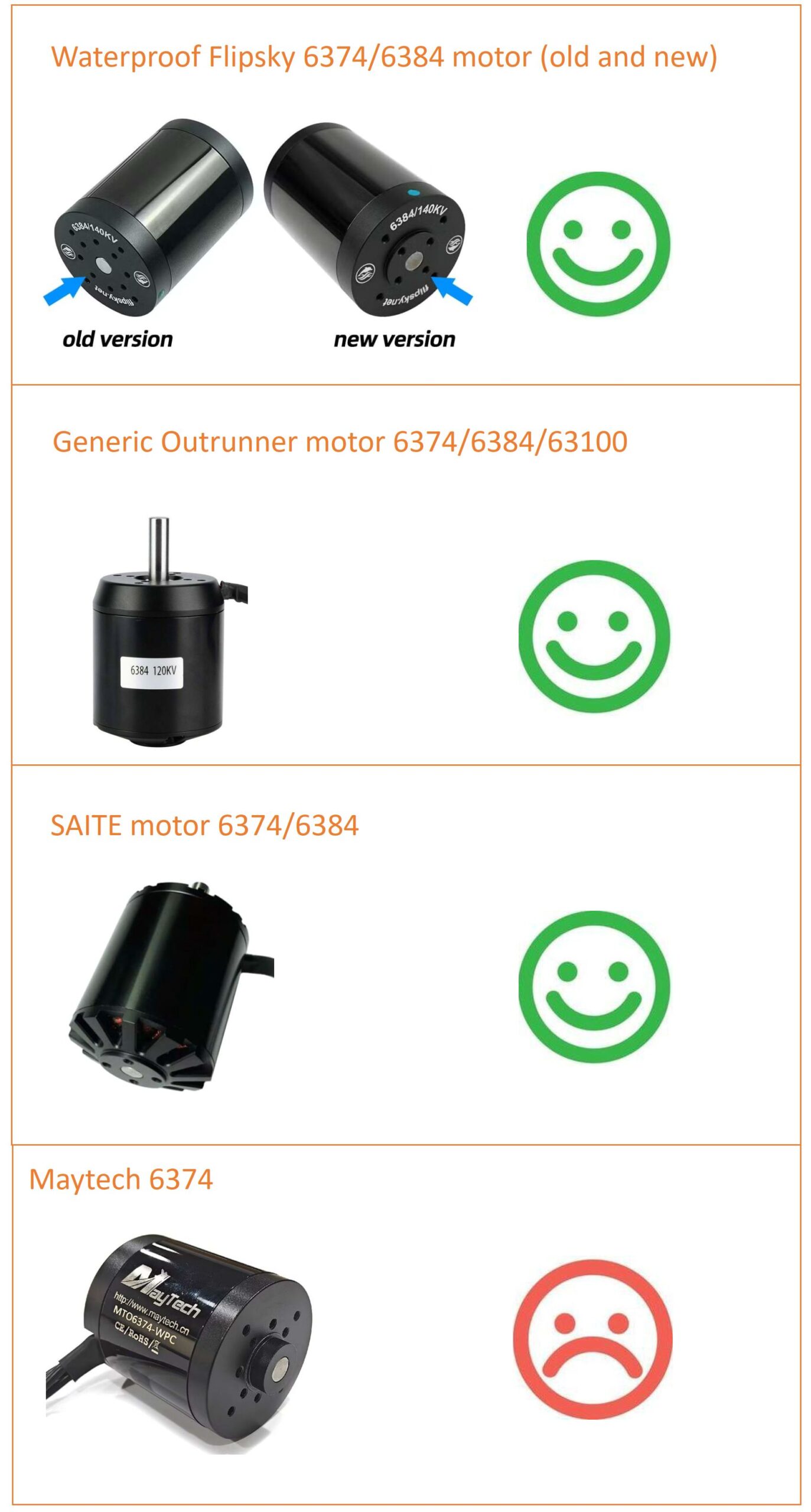

The Trinity NXT is the successor to the most popular DIY folding propeller – but now it comes with 3 blades! With the included Motor Mount Adapter Disk, it’s compatible with most common outrunner motors for your Foil Assist Project (check compatibility list)
The Trinity NXT is the next evolution of our proven three-blade folding propeller. A completely redesigned, high-strength reinforced hub shrugs off extreme torque from aggressive take-offs and long, powered runs. The new, flow-optimized hub profile smooths out turbulence, while blade tips now fold past 110 °, tucking tightly alongside the fuselage. The payoff: noticeably lower drag when you’re off-throttle, longer glide times, and whisper-quiet performance.
Need extra torque to get out of the water more easily?
The Trinity NXT Propeller is designed to boost low-end thrust, making it the perfect upgrade for riders seeking more power. Ideal for pushing limits in rider weight, board size, or foil size, it brings a new level of performance for demanding conditions.
Compared to standard two-blade systems, the Trinity Three-Blade Propeller offers:
- Reduced Vibration – The three-blade design significantly minimizes vibrations for a smoother ride
- Increased Low-End Thrust – The third blade moves more water for a stronger push
- Enhanced Surface Driving – More effective when the propeller breaches the water’s surface
What material is FOLD made off?
- Material: Made out of a strong polymer composite
- Colour: black
Specifications:
- Diameter: 172mm
- Pitch: 5″
- direction of rotation: counter clockwise
Attention: Propeller blades for the two-blade Folding Propeller (Fold) or the old Trinity (Gen 1) are not compatible with the new TRINITY NXT System
Scope of delivery:
- 1x Trinity NXT Propeller Hub
- 3x Trinity NXT Propeller Blades
- 3x M4 Shoulder Screw Stainless Steel
- 3x M4 Lock Nut Stainless Steel
- 4x M4x10 screw Stainless Steel
- 1x Motor Mount Adapter Disk
